TEXMOVER TX-EPS 138 RS Electric Rider Pallet Stacker – 3,300 lb Capacity
The TEXMOVER TX-EPS 138 RS is a heavy-duty full-electric rider pallet stacker designed for efficient pallet lifting, transportation, and high stacking operations. Built for warehouses, distribution centers, stockrooms, loading docks, and industrial facilities, this electric stacker combines powered drive, powered lift, rider platform operation, compact maneuverability, and reliable battery-powered performance.
With a 3,300 lb load capacity, 138″ maximum lift height, fixed straddle legs, durable steel construction, and adjustable forks, the TX-EPS 138 RS is ideal for businesses that need dependable material handling equipment for daily warehouse operations.
Key Features
- Full Electric Drive & Lift – Powered travel and lifting reduce manual labor and improve productivity
- 3,300 lb Load Capacity – Built for warehouse, industrial, and pallet stacking applications
- 138″ Lift Height – Ideal for higher pallet stacking, shelving, and storage applications
- Rider Platform Design – Allows the operator to stand and ride during transport for improved efficiency
- Fixed Straddle Legs – Provides added stability during lifting and transportation
- Adjustable Fork Width – Forks adjust from 5.5″ to 27″ to fit various pallet sizes
- Compact & Maneuverable – Designed for warehouses, aisles, docks, and storage areas
- Heavy-Duty Steel Construction – Built for demanding daily commercial use
- Electromagnetic Brake – Helps provide safe and controlled operation
Best For
- Warehouse pallet stacking
- Distribution center operations
- Loading dock material handling
- High-rack storage applications
- Industrial pallet transportation
- Retail stockroom operations
- Manufacturing facilities

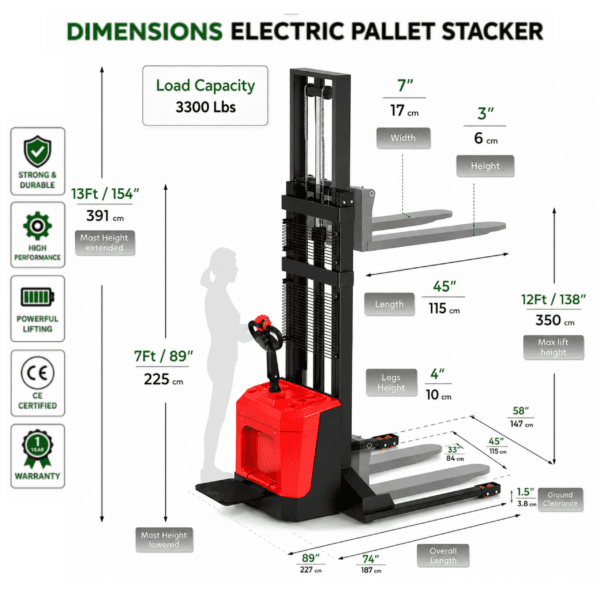

Specifications
| Model | TX-EPS 138 RS |
| Load Capacity | 3,300 lbs |
| Maximum Lift Height | 138 in / 11.5 ft |
| Load Center Distance | 20 in |
| Fork Length | 45 in |
| Fork Width | Adjustable 5.5″ – 27″ |
| Leg Type | Fixed Straddle Legs |
| Operation Type | Rider / Stand-On Type |
| Drive Type | Full Electric |
| Battery Type | 48V Lead Acid Battery System |
| Drive Motor | 0.8 kW |
| Lift Motor | 2.2 kW |
| Wheel Type | Polyurethane Wheels |
| Turning Radius | 62 in |
| Overall Dimensions | 74″ L × 58″ W × 89″ H |
| Maximum Operating Height | 154 in |
| Net Weight | Approx. 1,356 lbs |
What’s Included
- TEXMOVER TX-EPS 138 RS Electric Rider Pallet Stacker
- 48V Battery System
- Battery Charger
Warranty
12-Month Limited Warranty
Covers manufacturer defects in major components and non-wear parts for a period of 12 months from the date of delivery. Consumable and wear items such as wheels, rollers, chains, bearings, hydraulic seals, batteries, and damage caused by misuse, overloading, improper maintenance, accidents, or normal wear are not covered.
Shipping Information
Freight shipping with curbside delivery. Tracking information is provided once the order ships. Contact us for commercial delivery options, liftgate service, residential delivery, or estimated lead times.
Why Choose TEXMOVER?
TEXMOVER equipment is built for reliable daily warehouse operation with a focus on durability, performance, and operator efficiency. The TX-EPS 138 RS helps businesses lift, stack, and move pallets more efficiently while reducing manual labor and improving warehouse productivity.
